Nástrojové pružiny pre stredne ťažké zaťaženie NP R

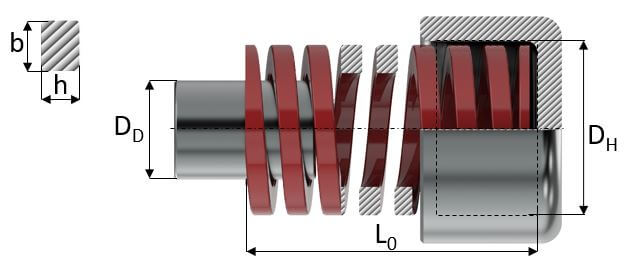

b – šírka profilu (mm)
h – výška profilu (mm)
DH – min. priemer diery (mm)
DD – max. priemer hriadeľa (mm)
L0 – voľná dĺžka (mm)
KATALÓGOVÉ
ČÍSLODH
(mm)DD
(mm)b
(mm)h
(mm)L0
(mm)tuhosť
k
(N/mm)stlačenie
20% z L0
(mm)sila pri
stlačení
20% z L0
(N)stlačenie
25% z L0
(mm)sila pri
stlačení
25% z L0
(N)max.
dovolené
stlačenie
30% z L0
(mm)max.
dovolená sila
pri stlačení
30% z L0
(N)max.
stlačenie
D (!)
(mm)sila pri max.
stlačení
F (!)
(mm)
R 10 - 025 10 5 1.9 1.5 25 22.1 5 111 6.3 139 7.5 166 9.2 203
R 10 - 032 10 5 1.9 1.5 32 17.5 6.4 112 8 140 9.6 168 12.1 212
R 10 - 038 10 5 1.9 1.5 38 17.1 7.6 130 9.5 162 11.4 195 13.2 226
R 10 - 044 10 5 1.9 1.5 44 15 8.8 132 11 165 13.2 198 15.1 227
R 10 - 051 10 5 1.9 1.5 51 12.8 10.2 131 12.8 164 15.3 196 19.5 250
R 10 - 064 10 5 1.9 1.5 64 10.7 12.8 137 16 171 19.2 205 21.8 233
R 10 - 076 10 5 1.9 1.5 76 7.5 15.2 114 19 143 22.8 171 27.9 209
R 10 - 305 10 5 1.9 1.5 305 2.1 61 128 76.3 160 91.5 192 127.2 267
R 13 - 025 12.5 6.3 2.4 1.9 25 42.1 5 211 6.3 265 7.5 316 9.8 413
R 13 - 032 12.5 6.3 2.4 1.9 32 33.2 6.4 212 8 266 9.6 319 13.6 452
R 13 - 038 12.5 6.3 2.4 1.9 38 29.3 7.6 223 9.5 278 11.4 334 14.6 428
R 13 - 044 12.5 6.3 2.4 1.9 44 24.6 8.8 216 11 271 13.2 325 18.1 445
R 13 - 051 12.5 6.3 2.4 1.9 51 19.6 10.2 200 12.8 251 15.3 300 22.3 437
R 13 - 064 12.5 6.3 2.4 1.9 64 15 12.8 192 16 240 19.2 288 27.3 410
R 13 - 076 12.5 6.3 2.4 1.9 76 13.2 15.2 201 19 251 22.8 301 33.1 437
R 13 - 089 12.5 6.3 2.4 1.9 89 11.4 17.8 203 22.3 254 26.7 304 38.9 443
R 13 - 102 12.5 6.3 2.4 1.9 102 8.4 20.4 171 25.5 214 30.6 257 43.8 368
R 13 - 305 12.5 6.3 2.4 1.9 305 2.8 61 171 76.3 214 91.5 256 139.7 391
R 16 - 025 16 8 3.1 2.5 25 75.7 5 379 6.3 477 7.5 568 8.4 636
R 16 - 032 16 8 3.1 2.5 32 52.8 6.4 338 8 422 9.6 507 10.5 554
R 16 - 038 16 8 3.1 2.5 38 48.5 7.6 369 9.5 461 11.4 553 13.6 660
R 16 - 044 16 8 3.1 2.5 44 42.8 8.8 377 11 471 13.2 565 15.9 681
R 16 - 051 16 8 3.1 2.5 51 37.1 10.2 378 12.8 475 15.3 568 18.9 701
R 16 - 064 16 8 3.1 2.5 64 30.3 12.8 388 16 485 19.2 582 24.9 754
R 16 - 076 16 8 3.1 2.5 76 25.7 15.2 391 19 488 22.8 586 29.2 750
R 16 - 089 16 8 3.1 2.5 89 21.7 17.8 386 22.3 484 26.7 579 34.5 749
R 16 - 102 16 8 3.1 2.5 102 19.3 20.4 394 25.5 492 30.6 591 39.1 755
R 16 - 115 16 8 3.1 2.5 115 15.7 23 361 28.8 452 34.5 542 44 691
R 16 - 305 16 8 3.1 2.5 305 7.1 61 433 76.3 542 91.5 650 103.6 736
R 20 - 025 20 10 4 3.3 25 216 5 1080 6.3 1361 7.5 1620 8.3 1793
R 20 - 032 20 10 4 3.3 32 168 6.4 1075 8 1344 9.6 1613 10.9 1831
R 20 - 038 20 10 4 3.3 38 129 7.6 980 9.5 1226 11.4 1471 12.5 1613
R 20 - 044 20 10 4 3.3 44 112 8.8 986 11 1232 13.2 1478 15 1680
R 20 - 051 20 10 4 3.3 51 94 10.2 959 12.8 1203 15.3 1438 17.6 1654
R 20 - 064 20 10 4 3.3 64 72.1 12.8 923 16 1154 19.2 1384 22.6 1629
R 20 - 076 20 10 4 3.3 76 59.7 15.2 907 19 1134 22.8 1361 27.5 1642
R 20 - 089 20 10 4 3.3 89 50.5 17.8 899 22.3 1126 26.7 1348 31.7 1601
R 20 - 102 20 10 4 3.3 102 44.2 20.4 902 25.5 1127 30.6 1353 37.5 1658
R 20 - 115 20 10 4 3.3 115 38.4 23 883 28.8 1106 34.5 1325 42.6 1636
R 20 - 127 20 10 4 3.3 127 34.1 25.4 866 31.8 1084 38.1 1299 45.5 1552
R 20 - 139 20 10 4 3.3 139 31 28 868 35 1085 42 1302 50.1 1553
R 20 - 152 20 10 4 3.3 152 28.2 30.4 857 38 1072 45.6 1286 55.8 1574
R 20 - 305 20 10 4 3.3 305 15 61 915 76.3 1145 91.5 1373 114.1 1712
R 25 - 025 25 12.5 5.5 4.2 25 375 5 1875 6.3 2363 7.5 2813 8.5 3188
R 25 - 032 25 12.5 5.5 4.2 32 297 6.4 1901 8 2376 9.6 2851 11 3267
R 25 - 038 25 12.5 5.5 4.2 38 219 7.6 1664 9.5 2081 11.4 2497 12.6 2759
R 25 - 044 25 12.5 5.5 4.2 44 187 8.8 1646 11 2057 13.2 2468 14.8 2768
R 25 - 051 25 12.5 5.5 4.2 51 156 10.2 1591 12.8 1997 15.3 2387 17.9 2792
R 25 - 064 25 12.5 5.5 4.2 64 123 12.8 1574 16 1968 19.2 2362 23.1 2841
R 25 - 076 25 12.5 5.5 4.2 76 99 15.2 1505 19 1881 22.8 2257 26.3 2604
R 25 - 089 25 12.5 5.5 4.2 89 84 17.8 1495 22.3 1873 26.7 2243 30.5 2562
R 25 - 102 25 12.5 5.5 4.2 102 73 20.4 1489 25.5 1862 30.6 2234 37.3 2723
R 25 - 115 25 12.5 5.5 4.2 115 65 23 1495 28.8 1872 34.5 2243 41.9 2724
R 25 - 127 25 12.5 5.5 4.2 127 57.7 25.4 1466 31.8 1835 38.1 2198 46.2 2666
R 25 - 139 25 12.5 5.5 4.2 139 52.7 28 1476 35 1845 42 2213 49.3 2598
R 25 - 152 25 12.5 5.5 4.2 152 47.8 30.4 1453 38 1816 45.6 2180 55.7 2662
R 25 - 178 25 12.5 5.5 4.2 178 41 35.6 1460 44.5 1825 53.4 2189 65.1 2669
R 25 - 203 25 12.5 5.5 4.2 203 35.8 40.6 1453 50.8 1819 60.9 2180 74.5 2667
R 25 - 305 25 12.5 5.5 4.2 305 22.9 61 1397 76.3 1747 91.5 2095 110.2 2524
R 32 - 038 32 16 7.1 5.4 38 388 7.6 2949 9.5 3686 11.4 4423 12.5 4850
R 32 - 044 32 16 7.1 5.4 44 324 8.8 2851 11 3564 13.2 4277 14.9 4828
R 32 - 051 32 16 7.1 5.4 51 272 10.2 2774 12.8 3482 15.3 4162 17.8 4842
R 32 - 064 32 16 7.1 5.4 64 212 12.8 2714 16 3392 19.2 4070 22.4 4749
R 32 - 076 32 16 7.1 5.4 76 172 15.2 2614 19 3268 22.8 3922 26.1 4489
R 32 - 089 32 16 7.1 5.4 89 141 17.8 2510 22.3 3144 26.7 3765 30.8 4343
R 32 - 102 32 16 7.1 5.4 102 122 20.4 2489 25.5 3111 30.6 3733 36.8 4490
R 32 - 115 32 16 7.1 5.4 115 107 23 2461 28.8 3082 34.5 3692 41.4 4430
R 32 - 127 32 16 7.1 5.4 127 93 25.4 2362 31.8 2957 38.1 3543 44.4 4129
R 32 - 139 32 16 7.1 5.4 139 86 28 2408 35 3010 42 3612 48.5 4171
R 32 - 152 32 16 7.1 5.4 152 78 30.4 2371 38 2964 45.6 3557 54.8 4274
R 32 - 178 32 16 7.1 5.4 178 67.2 35.6 2392 44.5 2990 53.4 3588 63.6 4274
R 32 - 203 32 16 7.1 5.4 203 59.1 40.6 2399 50.8 3002 60.9 3599 72.5 4285
R 32 - 254 32 16 7.1 5.4 254 46.4 50.8 2357 63.5 2946 76.2 3536 92.8 4306
R 32 - 305 32 16 7.1 5.4 305 38 61 2318 76.3 2899 91.5 3477 111.8 4248
R 40 - 051 40 20 8.4 6.2 51 350 10.2 3570 12.8 4480 15.3 5355 17 5950
R 40 - 064 40 20 8.4 6.2 64 269 12.8 3443 16 4304 19.2 5165 21.9 5891
R 40 - 076 40 20 8.4 6.2 76 219 15.2 3329 19 4161 22.8 4993 26.7 5847
R 40 - 089 40 20 8.4 6.2 89 190 17.8 3382 22.3 4237 26.7 5073 31.3 5947
R 40 - 102 40 20 8.4 6.2 102 163 20.4 3325 25.5 4157 30.6 4988 37.1 6047
R 40 - 115 40 20 8.4 6.2 115 142 23 3266 28.8 4090 34.5 4899 41 5822
R 40 - 127 40 20 8.4 6.2 127 128 25.4 3251 31.8 4070 38.1 4877 46.5 5952
R 40 - 139 40 20 8.4 6.2 139 115 28 3220 35 4025 42 4830 53.1 6107
R 40 - 152 40 20 8.4 6.2 152 105 30.4 3192 38 3990 45.6 4788 56.1 5891
R 40 - 178 40 20 8.4 6.2 178 89 35.6 3168 44.5 3961 53.4 4753 67.4 5999
R 40 - 203 40 20 8.4 6.2 203 77 40.6 3126 50.8 3912 60.9 4689 76.2 5867
R 40 - 254 40 20 8.4 6.2 254 61 50.8 3099 63.5 3874 76.2 4648 96.2 5868
R 40 - 305 40 20 8.4 6.2 305 51 61 3111 76.3 3891 91.5 4667 114.8 5855
R 50 - 064 50 25 11.1 7.6 64 413 12.8 5286 16 6608 19.2 7930 22.4 9251
R 50 - 076 50 25 11.1 7.6 76 339 15.2 5153 19 6441 22.8 7729 26.5 8984
R 50 - 089 50 25 11.1 7.6 89 288 17.8 5126 22.3 6422 26.7 7690 31.5 9072
R 50 - 102 50 25 11.1 7.6 102 245 20.4 4998 25.5 6248 30.6 7497 37.6 9212
R 50 - 115 50 25 11.1 7.6 115 215 23 4945 28.8 6192 34.5 7418 42.7 9181
R 50 - 127 50 25 11.1 7.6 127 192 25.4 4877 31.8 6106 38.1 7315 47.5 9120
R 50 - 139 50 25 11.1 7.6 139 168 28 4704 35 5880 42 7056 51.8 8702
R 50 - 152 50 25 11.1 7.6 152 154 30.4 4682 38 5852 45.6 7022 57.8 8901
R 50 - 178 50 25 11.1 7.6 178 134 35.6 4770 44.5 5963 53.4 7156 68.5 9179
R 50 - 203 50 25 11.1 7.6 203 117 40.6 4750 50.8 5944 60.9 7125 77.6 9079
R 50 - 254 50 25 11.1 7.6 254 89 50.8 4521 63.5 5652 76.2 6782 97.9 8713
R 50 - 305 50 25 11.1 7.6 305 73 61 4453 76.3 5570 91.5 6680 120.7 8811
R 63 - 076 63 38 11.6 12.3 76 618 15.2 9394 19 11742 22.8 14090 24.7 15265
R 63 - 089 63 38 11.6 12.3 89 515 17.8 9167 22.3 11485 26.7 13751 30 15450
R 63 - 102 63 38 11.6 12.3 102 438 20.4 8935 25.5 11169 30.6 13403 35.1 15374
R 63 - 115 63 38 11.6 12.3 115 370 23 8510 28.8 10656 34.5 12765 37.5 13875
R 63 - 127 63 38 11.6 12.3 127 333 25.4 8458 31.8 10589 38.1 12687 45.9 15285
R 63 - 152 63 38 11.6 12.3 152 269 30.4 8178 38 10222 45.6 12266 56.5 15199
R 63 - 178 63 38 11.6 12.3 178 226 35.6 8046 44.5 10057 53.4 12068 66.8 15097
R 63 - 203 63 38 11.6 12.3 203 198 40.6 8039 50.8 10058 60.9 12058 78.8 15602
R 63 - 254 63 38 11.6 12.3 254 155 50.8 7874 63.5 9843 76.2 11811 101.7 15763
R 63 - 305 63 38 11.6 12.3 305 128 61 7808 76.3 9766 91.5 11712 122.4 15667
